DIP Type 8P8C RJ45 Modular Jack Connector MJF13U-KX06B3-0808 / MJF13U-KX06B3-0808-LF

Name: DIP Type 8P8C RJ45 Modular Jack Connector MJF13UKX06B30808 MJF13UKX06B30808LF
Brand: LINK-PP
Price: 0.09 USD

Brand Name : LINK-PP

Model Number : MJF13U-KX06B3-0808 / MJF13U-KX06B3-0808-LF

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000/25K

Price : $0.09-$0.9

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 250000-320000/Month

Delivery Time : Stock

Packaging Details : TAPE & REE

Number of Ports : 1 Port

Number of Contacts : 8 Contact

Number of Positions : 8 Position

Shielding : Shielded

Tab Direction : Tab Up

LED Option : Without LED

PCB Thickness : 1.6mm

Contact Mating Area Plating : 6u” GOLD

Contact Now

MATERIAL CHARACTERISTICS

1. MATERIAL:
1.1 HOUSING: PA46, WITH GLASS FIBER,UL94V-0, STANDARD COLOR-BLACK,
1.2 INSERT HOUSING: PA46, WITH GLASS FIBER, UL94V-0, STANDARD COLOR-BLACK
1.3 CONTACTS: PHOSPHOR BRONZE.
1.4 SHELL: BRASS.

2. FINISH:
2.1 CONTACTS: 0.152μm [6μ'] GOLD PLATED ON CONTACT AREA, GOLD FLASH PLATED ON SOLDER TAIL, WITH ENTIRE CONTACT UNDERPLATED 1.27μm [50μ"] MIN. NICKEL.
2.2 SHELL: 0.508μm[20μ"] MIN. NICKEL PLATED.

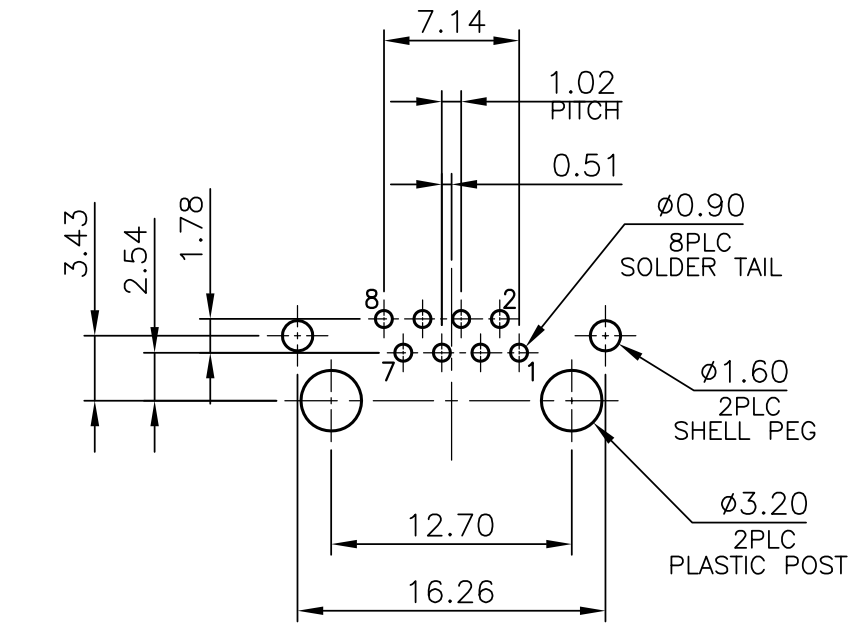

MJF13U-KX06B3-0808 / MJF13U-KX06B3-0808-LF DATASHEET:

DIP Type 8P8C RJ45 Modular Jack Connector MJF13U-KX06B3-0808 / MJF13U-KX06B3-0808-LF

8P8C RJ45 Modular Jack Applications:

1. Data
▪ Storage
▪ Servers
▪ Routers
▪ Switches
▪ Hubs

2. Consumer Goods
▪ Security Systems
▪ Set Top Boxes
▪ Video Game Systems
▪ PCs, Laptops
▪ Copiers, Printers

3. Industrial and Instrumentation
▪ Uninterruptible Power Supply (UPS)
▪ ATMs
▪ Vending Machines
▪ POS Terminals
▪ Industrial IoT Platforms

4. Networking & Telecom
▪ 5G Wireless
▪ Telephones
▪ Modems
▪ Fax Machines

5. Medical
▪ Analysis Equipment
▪ Mass Spectrometers
