Name: 2 Ports 74942302 Surface Mount Transformer For Electric Vehicles
Brand: LINK-PP
Price: 0.7 USD

Model Number : 74942302

Brand Name : LINK-PP

Certification : RoHS & REACH Compliant

Place of Origin : China

MOQ : 10pcs

Price : $0.7-$1.5

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 6000000/Month

Delivery Time : 2 weeks

Packaging Details : Tape and Reel

Ports : 2 Ports

Part Number : 74942302

Isolation Voltage : 4300VDC (1min, primary to secondary)

Operating Voltage : Up to 1000VDC

Turns Ratio : 1:1

Operating Temperature : -40°C ~ 125°C

Contact Now

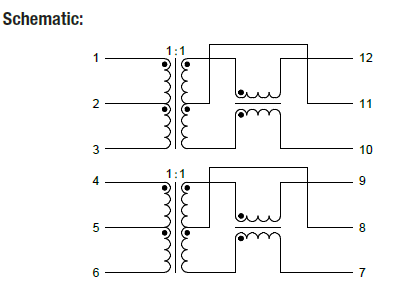

Category	Specification
Part Number	74942302
Series	WE-BMS
Transformer Type	SMT Transformer for Battery Management Systems
Mounting Type	Surface Mount (SMT)
Operating Temperature	-40°C to +125°C
Storage Conditions	< 40°C; < 75% RH (in original packaging)
Moisture Sensitivity	MSL 1
Inductance (L)	150 µH (min) to 450 µH (max) @ 100 kHz, 100 mV
Leakage Inductance	0.5 µH (max) @ 100 kHz, 100 mV
Insertion Loss (IL)	-0.25 dB (max) @ 4 MHz
Return Loss (RL)	-20 dB (min) @ 4 MHz, 100 Ω
CMRR (1–10 MHz)	-35 dB (min)
CMRR (10–1000 MHz)	-20 dB (min)
Working Voltage	1000 V DC
Isolation Voltage	4300 V DC (1 min), 3100 V AC (1 min)
Clearance Distance	10 mm (min)
Creepage Distance	10 mm (min)
DC Resistance (Transformer Side)	450 mΩ (max)
DC Resistance (CMC Side)	850 mΩ (max)
Dimensions (L × W × H)	15.10 mm × 15.40 mm × 3.45 mm (±0.25 mm)
Base Material	DAP WH-9100, UL 94V-0, CTI 0
Cover Material	LCP E4008, UL 94V-0, CTI 3
Wire Material	FIW-6
Certifications	RoHS Compliant (2011/65/EU & 2015/863), REACH Compliant ((EC) 1907/2006), AEC-Q200 Grade 1
Applications	Battery Management Systems (BMS), Energy Storage Systems, Uninterruptible Power Supplies (UPS), E-bikes, E-scooters, Industrial Interface Isolation
Packaging	Tape & Reel

Don't hesitate to get in touch with us for more detailed information.
