L22H002-L 5G Base-T Gigabit Single Port Ethernet LAN Filter PoE 60W

SPECIFICATION:
1 Designed for Ethernet 5G Base-T,full Single port applications.
2 Supports 4 pairs of category 6 or greater cable.
3 Cable interface for isolation and low common mode emissions.
4 Designed to meet IEEE 802.3 with 720mA balanced current.
5 Compliance with RoHS&Halogen Free requirements.
6 Operating and Storage Temperature

Operating Temperature : 0°C to +70°C
Storage Temperature : -25°C to +105°C
7 Moisture Sensitivity Level(MSL):2a

Application:

1 Frame Grabbers

2 Computer Terminals

3 Computer Motherboards

4 Workbenches and Workstations (Industrial)

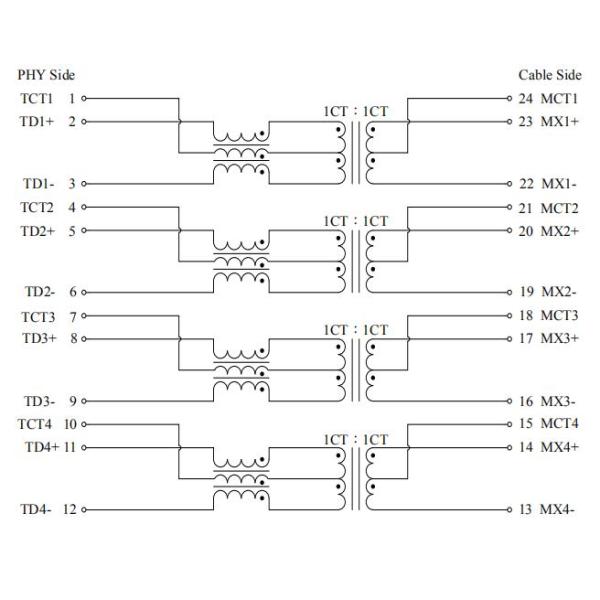

1.Electrical Specifications @25℃
Type : Balance low pass 100Ω impedance
2.Insertion Loss
1-50MHZ -0.5 dB Max
50-125MHZ -1.0 dB Max
125-300MHZ -2.0 dB Max
3.Return Loss
1-50MHz -20 dB Minload 100Ω
50-200MHz -20+8*log(Freq MHz/50MHz) dB Min load 100Ω
200-300MHz -15+30*log(Freq MHz/200MHz) dB Min load 100Ω
4.Reflected CM to Diff Conversion (REF)
1MHZ -30 dB Min
50MHZ -30 dB Min
100MHZ -27 dB Min
200MHZ -24 dB Min
300MHZ -22 dB Min
5.CM to DM Conversion(REF)
1-50MHZ -35 dB Min
125MHZ -30 dB Min
200MHZ -27 dB Min
300MHZ -24 dB Min
6.Reflected Diff to CM Conversion (REF)
1-10MHZ -48 dB Min
10-300MHZ -48+19*log(Freq MHz/10MHz) dB Min
7.CM to CM Attenuation (REF)
1-200MHZ -25 dB Min
200-300MHZ -20 dB Min
8.Cross Talk (REF)
1-125MHZ -30 dB Min
125-200MHZ -25 dB Min
200-300MHZ -25 dB Min
9.Inductance

@ 100KHz, 0.1V, 8mA DC BIAS 160uHMin
10.HiPot Test
@ 1500 Vrms
11.Turns Ratio
@ 1:1±5%
