L18T010-3 1000 Base - T Quad Ports LAN Filter Transformer Meet IEEE802.3at Standard

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L18T010-3

Equivalent : LPxxxxxx

Speed : 1000 Base-T

Transformer Type : Isolation and Data Interface

Operating Temperature : -40~+85℃

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

L18T010-3 1000 Base –T Quad Ports LAN Filter Transformer POE+

Item Part Number L18T010-3
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 1000 BASE-T
Number of Ports Quad Ports
PIN number 88 PIN
Cores per Port 32
POE PoE_30/60W
Type DIP
Size 29 x 26.5 x 12.8
Pin Pitch 1.65
Circuits 3C+T
Operating Temperature -40~+85℃
CMC PHY

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

L18T010-3 1000 Base - T Quad Ports LAN Filter Transformer Meet IEEE802.3at Standard

L18T010-3 1000 Base –T Quad Ports LAN Filter Transformer Product Dimension:

L18T010-3 1000 Base - T Quad Ports LAN Filter Transformer Meet IEEE802.3at Standard

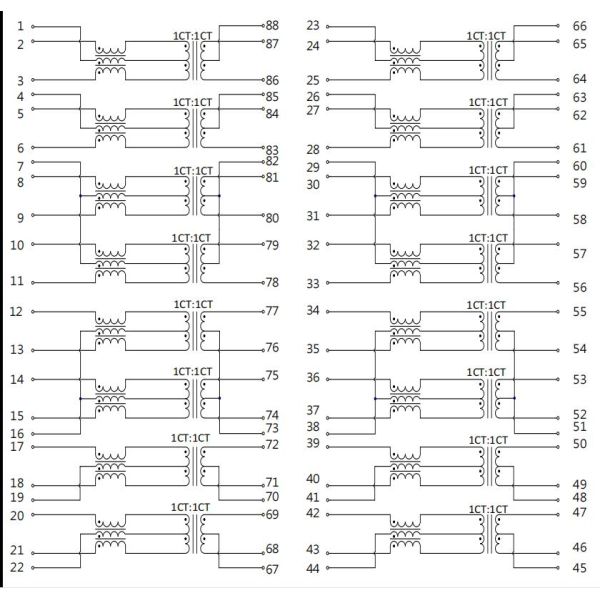

L18T010-3 Quad Ports LAN Filter ELECTRICAL CHARACTERISTICS Schematic:

L18T010-3 1000 Base - T Quad Ports LAN Filter Transformer Meet IEEE802.3at Standard



L18T010-3 Recommened PCB Layout (Unit mm)
L18T010-3 1000 Base - T Quad Ports LAN Filter Transformer Meet IEEE802.3at Standard

L18T010-3 SPECIFICATION:

Designed for Ethernet 1000 Base-T,full Quad ports applications.
Supports 16 pairs of category 5 UTP cable.
Cable interface for isolation and low common mode emissions.
Design to meet EEE 802.3at with 720mA balanced current.
Compliant with RoHS&Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature : -40°C to +85°C
Storage Temperature :
-40°C to +85°C
Pack ing Information
17 pcs finished goods per Tube
63 Tubes( 1071 pcs finished goods) per master carton.

L18T010-3 Similar Part Number :

L1CN001-0 L3AH002-0 L3BH002-0
L12N003-0 L12T001-2 L12T002-0
L13H003-0 L14H001-3 L14H002-4
L14H003-3 L14H005-0 L14T002-0
L14T002-3 L18T010-3 L19H007-4
