L14T002-0 Dual Ports Magnetic Transformer 48 Pin 1G Base - T LAN Filter

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L14T002-0

Equivalent : LPxxxxxx

Speed : 1G Base-T

Transformer Type : Isolation and Data Interface

Operating Temperature : -40~+85℃

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

L14T002-0 Dual Ports Magnetic Transformer 48 Pin 1G Base –T LAN Filter

Item Part Number L14T002-0
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 1G BASE-T
Number of Ports Dual Ports
PIN number 48 PIN
Cores per Port 16
POE Non PoE
Type DIP
Size 28.1 x 11.1 x 12
Pin Pitch 2.00
Circuits T+2C
Operating Temperature -40~+85℃
CMC Cable

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

L14T002-0 Dual Ports Magnetic Transformer 48 Pin 1G Base - T LAN Filter

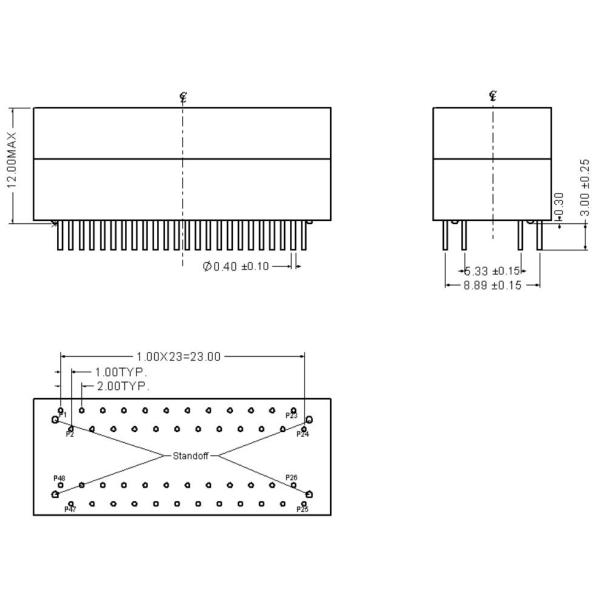

L14T002-0 Dual Ports Magnetic Transformer​​ Product Dimension:

L14T002-0 Dual Ports Magnetic Transformer 48 Pin 1G Base - T LAN Filter

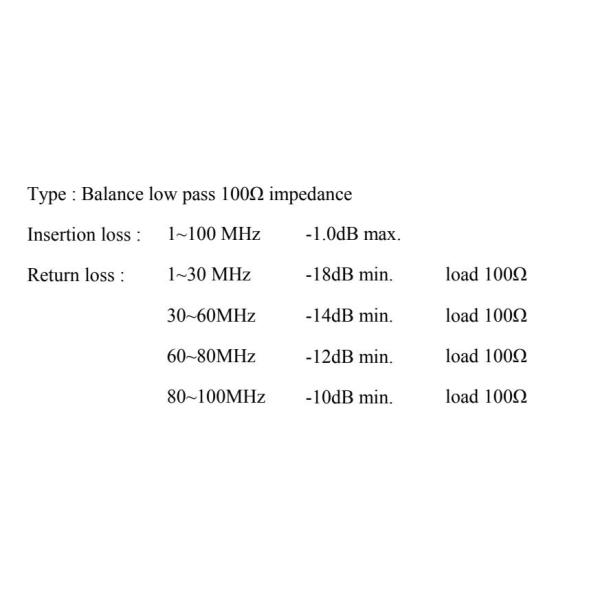

L14T002-0 48 Pin 1G Base –T LAN Filter Electrical Specifications @25℃:

L14T002-0 Dual Ports Magnetic Transformer 48 Pin 1G Base - T LAN Filter



L14T002-0 Dual Ports Magnetic Transformer 1G Base –T Recommened PCB Layout (Unit mm)
L14T002-0 Dual Ports Magnetic Transformer 48 Pin 1G Base - T LAN Filter

L14T002-0​​​​​ SPECIFICATION:

Designed for Ethernet 1000 Base-T,full Dual ports applications.

Supports 8 pairs of category 5 UTP cable.

Cable interface for isolation and low common mode emissions.

Designed to meet EEE 802.3ab standard for 1000 Base-T.

Compliant with RoHS&Halogen Free requirements.

Operating and Storage Temperature
Operating Temperature: -40°C to +85°C
Storage Temperature :
-40°C to +85°C

Packing Information
18 pcs finished goods per Tube
162 Tubes(2916 pcs finished goods) per master carton.

L14T002-0​​ Similar Part Number :

L1CN001-0 L3AH002-0 L3BH002-0
L12N003-0 L12T001-2 L12T002-0
L13H003-0 L14H001-3 L14H002-4
L14H003-3 L14H005-0 L14T002-0
L14T002-3 L18T010-3 L19H007-4
