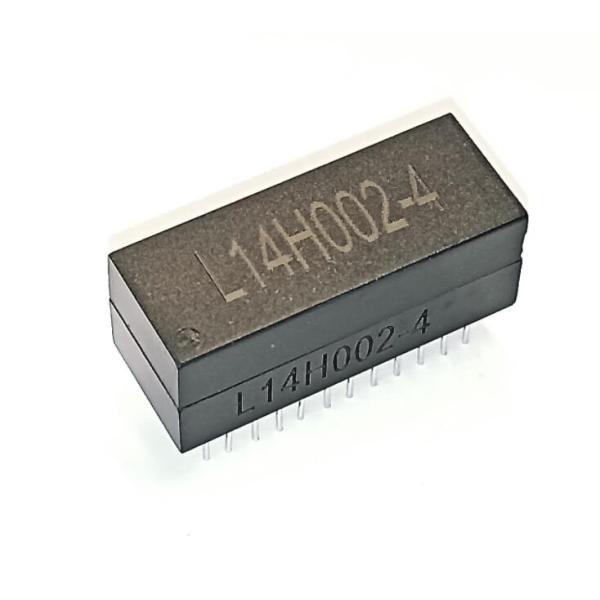

L14H002-4 Dual Ports LAN Filter 2.5G Base - T Ethernet Transformer PoE 90W

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L14H002-4

Equivalent : LPxxxxxx

Speed : 2.5G Base-T

Transformer Type : Isolation and Data Interface

Operating Temperature : 0~+70℃

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

L14H002-4 Dual Ports LAN Filter 2.5G Base –T Ethernet Transformer PoE_90W

UDE Part Number L14H002-4
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 2.5G BASE-T
Number of Ports Dual Ports
PIN number 48 PIN
Cores per Port 16
POE PoE_90W
Type DIP
Size 28.1 x 11.1 x 12
Pin Pitch 2.00
Circuits T+3C
Operating Temperature 0~+70℃
CMC PHY

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

L14H002-4 Dual Ports LAN Filter 2.5G Base - T Ethernet Transformer PoE 90W

L14H002-4 Dual Ports LAN Filter​ Product Dimension:

L14H002-4 Dual Ports LAN Filter 2.5G Base - T Ethernet Transformer PoE 90W

L14H002-4 2.5G Base –T Ethernet Transformer ELECTRICAL CHARACTERISTICS Schematic:

L14H002-4 Dual Ports LAN Filter 2.5G Base - T Ethernet Transformer PoE 90W



L14H002-4 Dual Ports LAN Filter 2.5G Base –T​ Recommened PCB Layout (Unit mm)
L14H002-4 Dual Ports LAN Filter 2.5G Base - T Ethernet Transformer PoE 90W

L14H002-4​​ SPECIFICATION:

Designed for Ethernet 2.5G Base-T,Dual ports applications.

Supports 8 pairs of category 5 UTP cable.

Cable interface for isolation and low common mode emissions.

Designed to meet IEEE 802.3bt type4 with 1000mA balanced current.

Compliance with RoHS&Halogen Free requirements.

Operating and Storage Temperature
Operating Temperature: 0°C to +70°C
Storage Temperature :
-25°C to +105°C

Packing Information
18 pcs finished goods per tube.
162 tubes(2916 pcs finished goods) per master carton.

L14H002-4 Similar Part Number :

L1CN001-0 L3AH002-0 L3BH002-0
L12N003-0 L12T001-2 L12T002-0
L13H003-0 L14H001-3 L14H002-4
L14H003-3 L14H005-0 L14T002-0
L14T002-3 L18T010-3 L19H007-4
