SMT Mount 749052014 LAN Magnetic Supports 10GBASE-T Ethernet

Name: SMT Mount 749052014 LAN Magnetic Supports 10GBASET Ethernet
Brand: LINK-PP
Price: 1 USD

Wholesale SMT Mount 749052014 LAN Magnetic Supports 10GBASE-T Ethernet from china suppliers

Brand Name : LINK-PP

Model Number : 749052014

Certification : RoHS, REACH

Place of Origin : GuangDong, China

MOQ : 100pcs

Price : Negotiable & Discount

Payment Terms : T/T, L/C, Western Union

Supply Ability : 6000K-PCS/Month

Delivery Time : Ships within 15 days

Packaging Details : Packaging Quantity : 20 Packaging Method : Box & Tray, Tray

Transformer Type : 10 Gigabit Transformer

Part Number : 749052014

PoE : Non-PoE

Turns Ratio : 1:1

Inductance (OCL) : 180 µH

Isolation Voltage : 1500 V RMS

Mounting Type : Surface Mount (SMT)

Dimensions (L × W × H) : 17.73mm × 14.86mm × 7.24mm

Contact Now

749052014 High Speed LAN Magnetics Overview:

The High Speed LAN Magnetics 749052014 is designed for 10GBASE-T Ethernet applications. Supporting data rates up to 10 Gbps, this SMT transformer offers a compact footprint (17.73 mm × 14.86 mm × 7.24 mm) and robust reliability with a 1500 V RMS isolation voltage. Featuring a 1:1 turns ratio and 180 µH minimum inductance, it ensures excellent signal integrity with low insertion loss and superior return loss across a wide frequency range. The 749052014 operates over an extended industrial temperature range from -40°C to +105°C and complies with IEEE 802.3an standards, making it ideal for use in EtherCAT and Profinet, as well as routers, switches, servers, IP cameras, and HDBaseT applications. Its fully automated manufacturing process guarantees consistent quality and performance, while its RoHS compliance ensures environmentally friendly design. The 749052014 is the optimal choice for engineers seeking reliable, high-speed magnetic solutions for next-generation networking equipment.

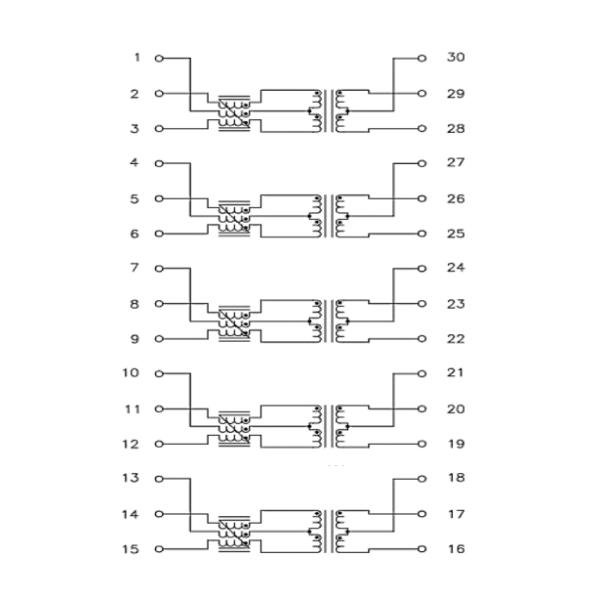

749052014 Datasheet:

SMT Mount 749052014 LAN Magnetic Supports 10GBASE-T Ethernet
