749024015C 1000Base-T SMT Transformer Industrial Grade

Name: 749024015C 1000BaseT SMT Transformer Industrial Grade
Brand: LINK-PP
Price: 1 USD

Brand Name : LINK-PP

Model Number : 749024015C

Certification : RoHS Compliant, REACH Compliant

Place of Origin : Guangdong, China

MOQ : 50pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 600K/Month

Delivery Time : 2 weeks

Packaging Details : Tape & Reel (TR)

Part Number : 749024015C

Number of Ports : 1

Pins : 24

PoE : non-PoE

Data Rate : 10/100/1000BASE-T

Inductance : 350µH

Isolation Test Voltage : 1500V（RMS）

Mount : SMT

Contact Now

Specifications of 749024015C SMT Transformer:

Parameter	Value
Part Number	749024015C
Product Series	LAN Transformer
Status	Active
Data Rate	10/100/1000BASE-T
Number of Ports	1
PoE Support	Non-PoE
Improved CMRR	No
Inductance	350 µH
Turns Ratio (Primary: Secondary)	1:1
Isolation Test Voltage	1500 V (RMS)
Mounting Type	Surface Mount (SMT)
Operating Temperature Range	-40°C to +105°C

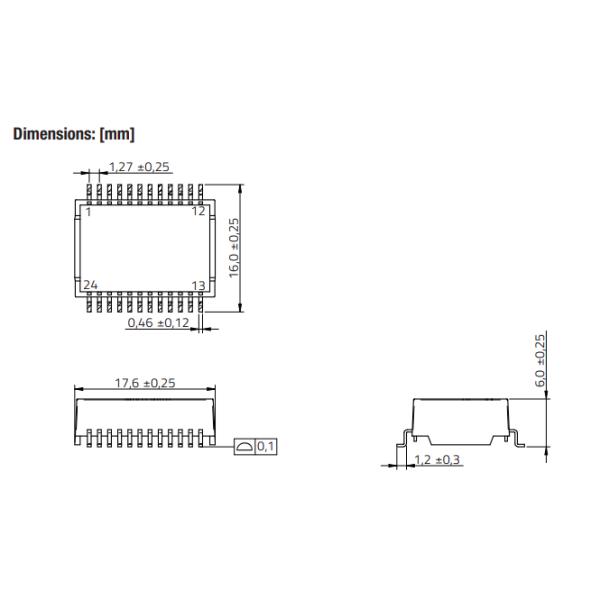

Length	17.6 mm
Width	16.0 mm
Height	6.0 mm
Compliance	RoHS Compliant

Applications of 749024015C 1000Base-T Ethernet Transformer:

Industrial Ethernet Systems: Compatible with protocols like EtherCAT and Profinet, making it suitable for factory automation and process control networks.
Networking Equipment: Ideal for integration into routers, switches, and hubs, supporting high-speed data transmission.
IoT Devices: Applicable in Internet of Things (IoT) applications, including smart sensors and connected devices requiring reliable Ethernet connectivity.
Surveillance Systems: Suitable for IP cameras and related security equipment that utilize Gigabit Ethernet for data transmission.
Robotics and Automation: Can be employed in robotic systems and automation equipment that require robust Ethernet communication.
Sensor Networks: Applicable in networks of sensors where consistent and high-speed data transfer is essential.
Compatibility with Ethernet ICs: Designed to comply with most Ethernet application ICs from manufacturers such as Microchip, Texas Instruments, Broadcom, and Linear Technology.

749024015C Datasheet:

749024015C 1000Base-T SMT Transformer Industrial Grade
