1X4 Ports Gigabit Ethernet Magnetics LP5027NL Cross G4P109N-A LF

Name: 1X4 Ports Gigabit Ethernet Magnetics LP5027NL Cross G4P109NA LF
Brand: LINK-PP
Price: 0.06 USD

Wholesale 1X4 Ports Gigabit Ethernet Magnetics LP5027NL Cross G4P109N-A LF from china suppliers

Brand Name : LINK-PP

Model Number : G4P109N-A LF

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Part Number : G4P109N-A LF

Products Type : Discrete LAN Magnetics

Ports : 4

Data Rate : 1G

RoHS : RoHS-certified

Package : DIP

Contact Now

Description of G4P109N-ALF DIP LAN Magnetics:

With a quad-port configuration and support for 1G data rates. The G4P109N-ALF DIP LAN Magnetics complies with IEEE 802.3ab standards for full 1000 BASE-T applications. Featuring 16 pairs of category 5 UTP cable support, it ensures efficient data transmission. Operating within a temperature range of 0℃ to +70℃ and boasting RoHS certification, this component offers high performance with maximum EMI suppression. Certified by ISO9001, SGS, UL, CE, and REACH, it provides signal protection, noise reduction, and enhanced system reliability for optimal performance in industrial Ethernet infrastructure setups.

Specifications of 1X4 Gigabit Magnetics:

Specification	LINK-PP P/N	Brand	Description
G4P109N-A LF	LP5027NL	LINK-PP	1x4 port Gigabit Magnetic

Series	Transformer Type	Applications	Turn Radio
Transformer	Isolation and Data Interface	10/100/1000 Base-T	1:1

Mounting Type	Size / Dimension	Height - Seated	Unit Price (USD)
Thru-Hole	34.50mm L x18.90mm	12.50mm	Negotiable
Features of G4P109N-A LF LAN Magnetics: Component Type: G4P109N-A LF Discrete LAN Magnetics Standard Compliance: IEEE 802.3ab for 1000 BASE-T full Quad port applications Supports: 16 pairs of category 5 UTP cable Cable Interface: Provides isolation and low common mode emissions ROHS Compliance: Adheres to ROHS requirements Temperature Range: Operating temperature from 0℃ to +70℃, storage temperature from -25℃ to +85℃ Industrial Ethernet Infrastructure Products Configuration: Quad port configurations available in Thru-hole/SMT Performance: Ensures high performance with maximum EMI suppression Certifications: ISO9001, SGS, UL, CE, REACH certified for major carrier networks Benefits: Frees up board space, offers signal protection, reduces noise in the system Reliability: Improves system reliability and ensures optimal performance.

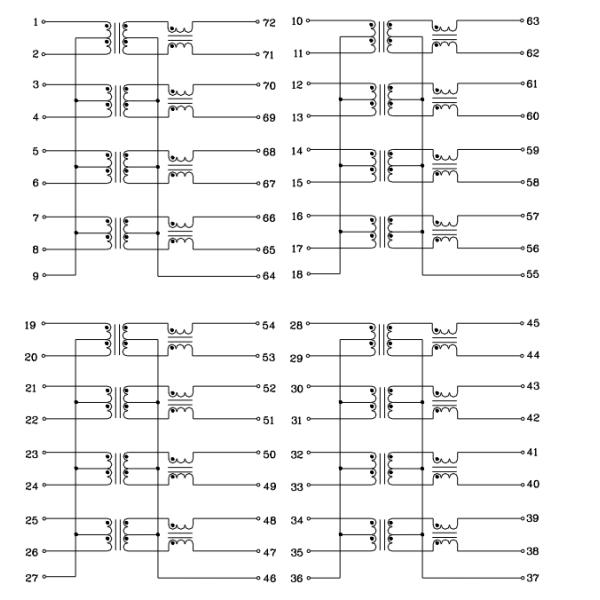

G4P109N-A LF Datasheet--Schematic
