15FB-83NL Power over Ethernet POE+ , 100/1000BASE-TX VoIP Magnetics

Name: 15FB83NL Power over Ethernet POE 1001000BASETX VoIP Magnetics
Brand: LINK-PP
Price: 0.06 USD

Wholesale 15FB-83NL Power over Ethernet POE+ , 100/1000BASE-TX VoIP Magnetics from china suppliers

Brand Name : LINK-PP

Model Number : 15FB-83NL

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Specification : 15FB-83NL

Part No : LP6096ANL

Interface : 100/1000Mbps Power Over Ethernet+

Family : Telecom Transformer

Standards : IEEE 802.3at

Samples : Free Available

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

15FB-83NL Power over Ethernet POE+ , 100/1000BASE-TX VoIP Magnetics

Compatible to Gigabit Ethernet Isolation Transformer 15FB-83NL
LP6096ANL 10/100/1000 Single Port PoE Plus LAN Filter
1x10/100/1000Mbps Power Over Ethernet (+)
IEEE802.3at / 750mA Current Capability / 1A Current Capability
Designed For IP Phone Or Switch Application
Suitable For Auto MDIX Application
Operating Temp: -40ºC to 85ºC
Maximum current of 1A when combining four pairs.

Electrical Specification @25℃
1.Insertion Loss(dB Max):
0.1MHz: -1.2
1-125MHz: -2.0
2.Return Loss(dB Min):
1-40MHz: -16
40-100MHz: -10
3.Cross Talk(dB Min):
30MHz:-43
60MHz:-37
100MHz:-33
4.CMRR(dB Min):
30MHz: -30
200MHz: -15
5.DCR Balance: 1Ω %%P0.05Ω
6.OCL:
(1) 350uH Min @20mA DC Bias
(2) 120uH Min @30mA DC Bias
7.Temperature rise of 35℃ when supplying
1 Amp continuous over 4 pairs
8.Hipot:1500Vrms
9.Operating Temperature: -40℃～+85℃.

Product Tags:

poe magnetics

ethernet transformer

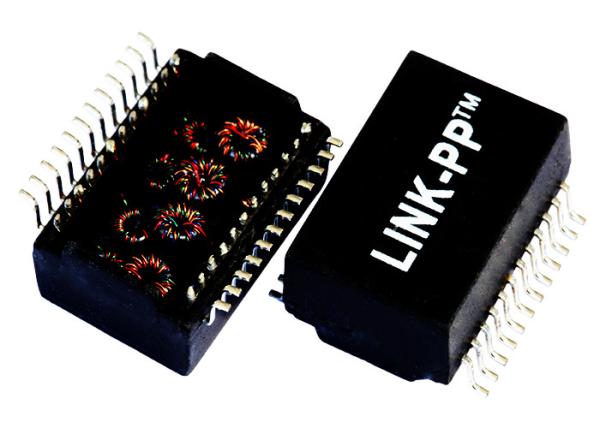

15FB-83NL Power over Ethernet POE+ , 100/1000BASE-TX VoIP Magnetics Images
