749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics

Name: 749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics
Brand: LINK-PP
Price: 0.07 USD

Wholesale 749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics from china suppliers

Brand Name : LINK-PP

Model Number : 749020023A

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.07-$2.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

LINK-PP P/N : LP82440ANL

Equivalent to : 749020023A WE LAN Transformers

Turns Ratio : 1CT : 1CT

Speed : 1000BASE-T

Hipot : 1500V

PoE : non-PoE

Mounting : SMT

Contact Now

749020023A 10/100/1000 Base-T 1 Port SMT Transformer Introduction:

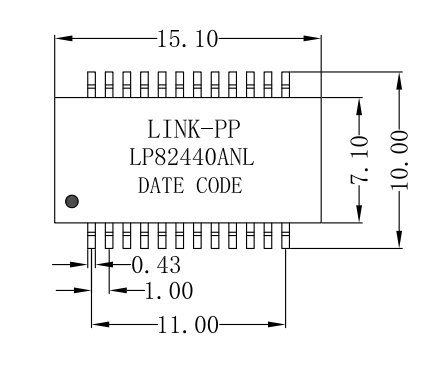

749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics

Electrical Specifications @ 25°C

1.Turn Ratio(TX/RX):
Pri:Sec=1CT:1CT ±5%P2.Inductance OCL:
350uH Min,100KHz/0.1V 8mA DC BLAS
3. Insertion Loss:
1-100MHz:-1.0dB Max
4. Return Loss:
1-30MHz:-18dB Min
40MHz:-14.4dB Min
50MHz:-13.1dB Min
60-80MHz:-12dB Min
5. Crosstalk:
30MHz:-45dB Min
60MHz:-40dB Min
100MHz:-35dB Min

749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics

6. DCMR:
30MHz:-40dB Min
60MHz:-35dB Min
100MHz:-30dB Min
7. Isolation Voltage: 1500Vrms
8. Operating Temperature: -40℃～+85℃

749020023A SMT Transformer Sechematic:

749020023A WE LAN Transformers LP82440ANL 24Pins Gigabit Magnetics

Applications of SMT WE LAN Transformers:

Suitable for industrial temperatures from –40 °C up to +125 °C
Compatible to Industrial Ethernet systems like EtherCAT or Profinet
Compliant with most ICs for Ethernet applications such as Microchip, Texas Instruments, Broadcom, Linear Technology
Hubs, Routers, Switches, IP cameras, IoT applications
