Right Angle 615006138421 6P6C Modular Connector without Magnetics

  • 1
  • 2

Brand Name : LINK-PP

Model Number : 615006138421

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 250000-320000/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Part Number : 615006138421

Tab Position : Tab Up

PIN Type : THT Solder

Orientation : 90°C Angle (Right)

Temperature : -40°C to +85°C

File : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

Overview

  1. Part Number: 615006138421
  2. Connector Type: RJ11 Modular Jack (6P6C)
  3. Port Configuration: 1x1 (Single Port)
  4. Mounting Style: Through-Hole Technology (THT)
  5. Orientation: Right Angle (Horizontal) with Tab Up
  6. Shielding: Unshielded
  7. LED Indicators: None
  8. Operating Temperature Range: -40°C to +85°C
  9. Compliance: RoHS Compliant
  10. Durability: 500 Mating Cycles​

Material Properties

  • Insulator Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Insulator Color: Black
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • Contact Type: Stamped​

Electrical Characteristics

  • Rated Current: 1.5 A
  • Working Voltage: 120 V AC
  • Withstanding Voltage: 1000 V AC
  • Contact Resistance: ≤ 20 mΩ
  • Insulation Resistance: ≥ 500 MΩ

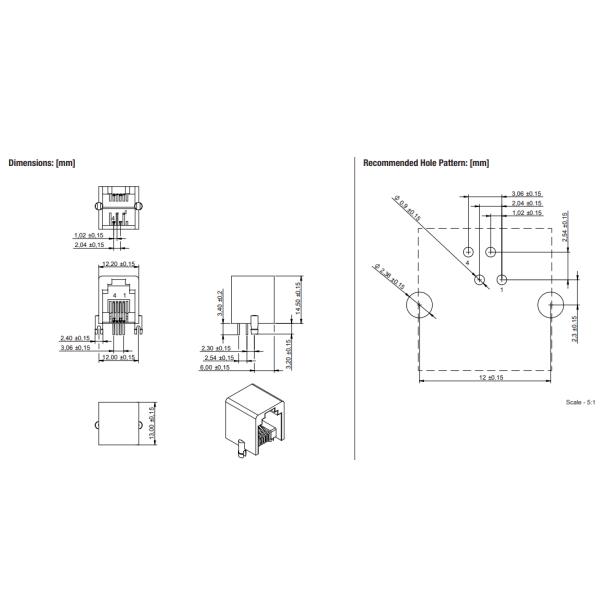

Datasheet

Right Angle 615006138421 6P6C Modular Connector without Magnetics
