MIC24010-5104T-LF3 / MIC24010-0104T-LF3 Ethernet RJ45 Shielded Socket LPJ0011CNL

Name: MIC240105104TLF3 MIC240100104TLF3 Ethernet RJ45 Shielded Socket LPJ0011CNL
Brand: LINK-PP
Price: 0.09 USD

Wholesale MIC24010-5104T-LF3 / MIC24010-0104T-LF3 Ethernet RJ45 Shielded Socket LPJ0011CNL from china suppliers

Brand Name : LINK-PP

Model Number : MIC24010-5104T-LF3 / MIC24010-0104T-LF3

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 350000-420000/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Item : MIC24010-5104T-LF3 / MIC24010-0104T-LF3

Cross Part : LPJ0011CNL

Mounting : Side Entry (Right Angle)

Jack Type : RJ45 Female

Operating Temperature : 0 to 70

Samples : Available 2 pcs

Contact Now

MIC24010-5104T-LF3 / MIC24010-0104T-LF3 Ethernet RJ45 Shielded Socket LPJ0011CNL

1. Conserves minimizing PCB space.
2. Mass Production Model : LPJ0011CNL
3. 10/100M RJ45 Single Port
4. Dimension : 15.93x21.25x13.30mm
5. Rj45 integrated magnetics
6. LED optional , EMI-finger Optional

6. Files : PDF/3D/ISG/Stp/Step/Datasheet

MIC24010-5104T-LF3 / MIC24010-0104T-LF3 Ethernet RJ45 Shielded Socket LPJ0011CNL

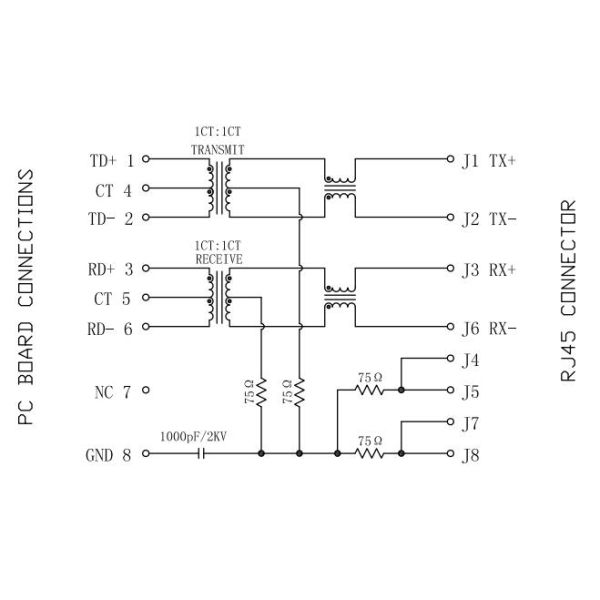

Turn Ratio(±2%):	TX=1CT:1CT RX=1CT:CT
Inductance OCL	350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss	-1.0dB MAX @ 1-65MHz
Return Loss	-20dB MIN @ 1-10MHz
	-16dB MIN @ 10-30MHz
	-12dB MIN @ 30-60MHz
	-10dB MIN @ 60-100MHz
Cross talk	-40dB MIN @ 1-30MHz
	-35dB MIN @ 30-60MHz
	-30dB MIN @ 60-100MHz
Common Mode Rejection	-30dB MIN @ 1-50MHz
Common Mode Rejection	-20dB MIN @ 50-150MHz
Hipot Test	1500Vrms MIN
Operating Temperature Range	0℃ TO 70℃

Competitive Advantage:

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And Optical Transceiver Modules

1. 16 years production experience,

2. 1100 staff,

3. 100% test

4. Flexible delivery time
