H5084NL / HX5084NL PoE Transformer LP82440ANL Ethernet Magnetics

  • 1
  • 2

Brand Name : LINK-PP

Model Number : H5084NL / HX5084NL

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$2.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 5KK/Month

Delivery Time : 5-8 working days

Packaging Details : T&R

Series : H5084NL / HX5084NL Pulse Transformers

Construction : Open Frame

PoE Rating : 4pair PoE 30W

Apllication : 10/100/1000Mbps

Original Munafactuer : LINK-PP LP82440ANL

Free Samples : Available

Contact Now

H5084NL / HX5084NL Ethernet Magnetics Transformer Overview:

PN#

Manufacturer

Part Number

Manufacturer

Description

H5084NL / HX5084NL

LP82440ANL

LINK-PP

1000 Base-T Ethernet Magnetics

Series

Transformer Type

Speed

Turn Radio

PoE Transformer

Isolation and Data Interface

10/100/1000 Base-T

1:1

Mounting Type

Size / Dimension

Height - Seated (Max)

Application

Surface Mount

15.24mm x 10.287mm x 4.14mm

4.00mm

PoE

Electrical Specifications @25℃


1. Turn Ratio(TX/RX): 1CT:1CT ±5%

2. Inductance OCL: 350uH Min
@100KHz/0.1V 8mA DC BLAS
3. Insertion Loss:
1-100MHz:-1.0dB Max
4. Return Loss:
1-30MHz:-18dB Min
40MHz:-14.4dB Min
50MHz:-13.1dB Min
60-80MHz:-12dB Min

100MHz:-10dB Min
5. Crosstalk:
30MHz:-45dB Min
60MHz:-40dB Min
100MHz:-35dB Min
6. DCMR:
30MHz:-40dB Min
60MHz:-35dB Min
100MHz:-30dB Min
7. Isolation Voltage: 1500Vrms

8. Operating Temperature: -40℃ ~ +85℃

Notes for Single-Port 1000 BASE-T Transformer:

1. RoHS Compliant: Ensures environmentally friendly and lead-free manufacturing.
2. Header Material: Constructed from thermoset plastic with a flammability rating of UL 94V0 or better, providing enhanced safety and reliability.
3. Storage Temperature: Can be stored within a temperature range of -20°C to +125°C.
4. Compliance to J-STD Standards:

  • J-STD-002: Meets solderability requirements at 245°C reflow profile.
  • J-STD-020: Rated as Level 1, indicating no moisture sensitivity.
  • J-STD-075: R7 compliant, with a maximum reflow soldering temperature of 245°C.

5. Packaging: Available in Tape & Reel packaging for efficient handling and automated assembly.

H5084NL Schematics:

H5084NL / HX5084NL PoE Transformer LP82440ANL Ethernet Magnetics

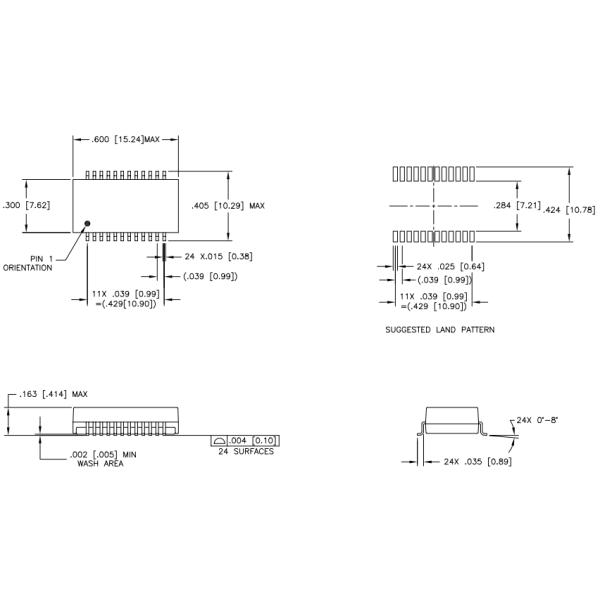

H5084NL Dimension:

H5084NL / HX5084NL PoE Transformer LP82440ANL Ethernet Magnetics
