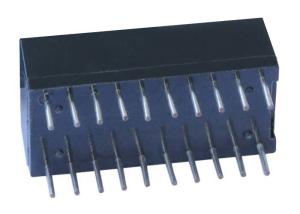

HST-2071DHR 10/100Base-T DIP Magnetics Transformer 1500Vrms

Brand Name : LINK-PP

Model Number : HST-2071DHR

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

LINK-PP P/N : HST-2071DHR

Familiy : 10/100 Magnetics

Mounting : DIP

Samples : Available

Number of Ports : Single

Hi-pot : 1500Vrms

OCL : 350uh min

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

HST-2071DHR 10/100 Base-T Magnetics Modules Single port DIP

Features:
● Designed to meet IEEE 802.3 requirements.
● Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,DC 8mA .
● LL:0.5uH Max @100KHz, 0.1V
● Cww:75pF Max@100KHz, 0.1V
● Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
● Storeage Temperature -25℃ to +125℃.
● RoHS compliance.

Detailed Information:

Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs
Part Number HST-2071DHR
Speed 10/100 BASE-T
Number of Ports

Single

Application - LAN ETHERNET (NON PoE)
Package SMD
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) -
Package Height (mm)

6.80

Package Length (Inches) -
Package Length (mm) 20.70
Package Width (Inches) -
Package Width (mm) 12.50
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Product Lines

Now has 22 production lines, using IE technology to analyze the process statistics, continuously improve the production process and technology, improve production efficiency.

QC Profile

> ISO9001:2008 Quality management system

> ISO14001:2004 Environmental management system

> RoHS Environmental protection certification

> CE certification

> FCC certification

FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer since 1997.

2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from

small order.

3.Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.

4.What is your delivery time?

Usually within 2-3 working days

5.What is your payment way?

T/T, L/C, D/P,MoneyGram,Western Union and Paypal.

6.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
