TE 2198230-1 SFP+ 1x2 Cage With Heat Sink External Springs

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: TE 21982301 SFP 1x2 Cage With Heat Sink External Springs
Brand: LINK-PP
Price: 0.11 USD

Brand Name : LINK-PP

Certification : ISO 9001,ISO 14001,UL,SGS,REACH168

Place of Origin : Guangdong,China

MOQ : 10/100/25K

Price : $0.11-$35

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 350K/Month

Delivery Time : Stock

Packaging Details : 20/Tray

Original : 2198230-1

Connector Type : SFP+

Part Status : Active

Connector Style : Cage, Ganged (1 x 2) with Heat Sink

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More Than 20Years

Contact Now

2198230-1,SFP+, Cage Assembly, Data Rate (Max) 16 Gb/s, External Springs, SFP+ Enhanced, 1 x 2, Pin, Heat Sink Height 4.2 mm [.165 in]

Part Number	2198230-1
Manufacturer	LINK-PP
Part Status	Active
Connector Type	SFP+
Connector Style	Cage, Ganged (1x2) with Heat Sink
Number of Ports	1X2 port
Number of Rear EONs per Port Column	-
Included Lightpipe	NO
PCB Mounting Style	Through Hole - Press-Fit
Data Rate (Max) (Gb/s)	16
Features	EMI Shielded
Operating Temperature Range	-55 – 105 °C
PCB Thickness (Recommended)	2.25 mm [ .089 in ]
Tail Length	2.05 mm [ .081 in ]
Cage Material	Nickel Silver Alloy
EMI Containment Feature Type	External Springs
Circuit Application	Signal

You may be interesting in below considerate supports:

Datasheet	Request by email to	contact us
Samples	Free	For Free samples delivery, pls advise below infomation For Shipping
		Company Name
		Delivery Address
		Telephone Number
		Contact Person
		UPS/DHL/Fedex/TNT A.C	(If available)
Trial Production	U/P(USD)	$0.09-$1.85	We can ship out parts directly to your warehouse/door to door
	L/T(Weeks)	Stock
	Shipping Term	DAP/CIF/FCA/FOB
Mass Production	U/P(USD)	Stock
	L/T(Weeks)	Stock
	Shipping Term	DAP/CIF/FCA/FOB
	Lifecycel	More than 20 years	You can use our parts for long term consideration
	Reject Ratio	Zero Defective (100% Tested)
Special Services	Accept customized service		Accept revised designing
Now you can contact us instantly

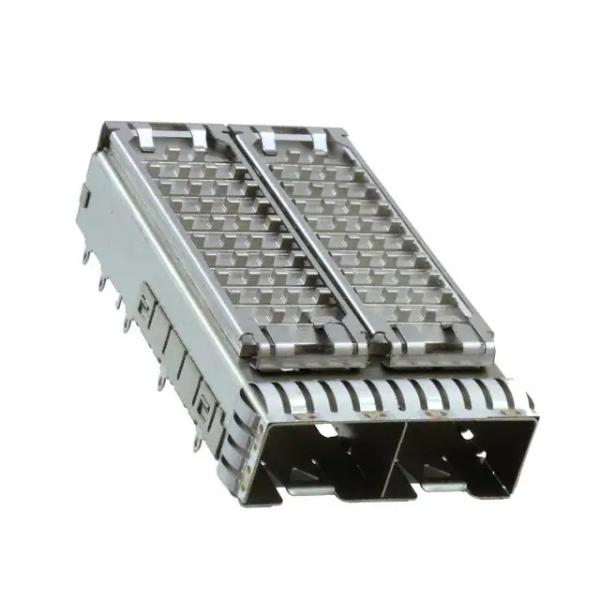

TE 2198230-1 SFP+ 1x2 Cage With Heat Sink:

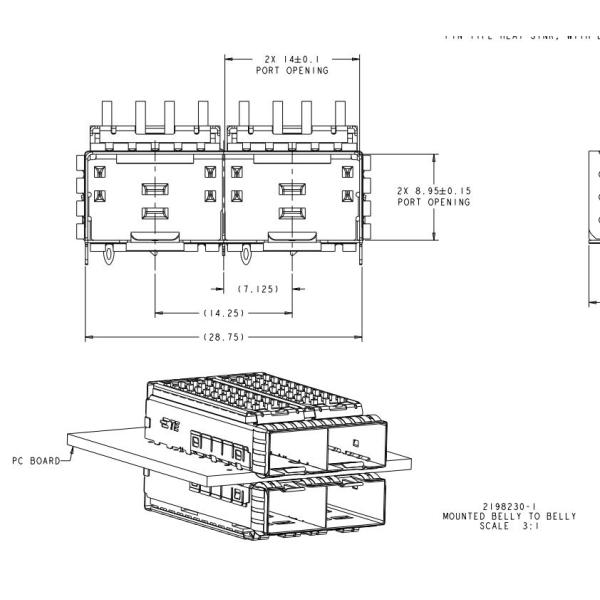

2198230-1 SFP+ 1x2 Cage With Heat Sink External Springs Dimension:

TE 2198230-1 SFP+ 1x2 Cage With Heat Sink External Springs

2198230-1 Similar Part Number :

What is SFP+ Cage ?

SFP+ cage is designed with metal fingers in each cage port to protect against Electromagnetic Interference (EMI)

and improve contact interface to the mating surface when inserted into the chassis opening. The EMI metal cages

are available in 1x1, 1x2, 1x3, 1x4 and 1x6 configurations.
