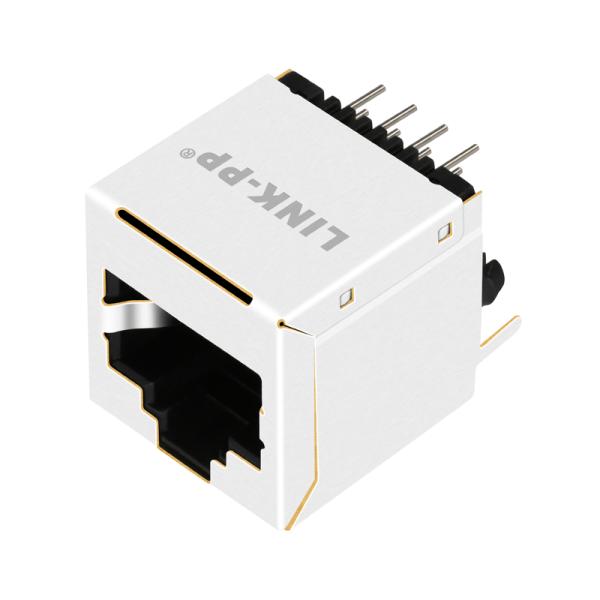

JXD2-0Z11NL Without LED 100BASE-T VERTICAL RJ45 Jack TOP ENTRY 8P8C

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPJxxxxxx

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : OEM Price

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton

Original : JXD2-0Z11NL

Equivalent : LPJxxxxxx

Operating Temperature : -40°C ~ 85°C

Samples : Free Available

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More than 20Years

Contact Now

JXD2-0Z11NL Without Led 100BASE-T VERTICAL RJ45 Jack TOP ENTRY 8P8C

LINK-PP Part NumberLPJxxxxxx
Part NumberJXD2-0Z11NL
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
SPEED100 BASE-T
POE RATINGNON-POE
LED OptionWithout Led
Number of Ports1X1 Port
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWITH
Operating Temperature-40°C ~85°C
CONTACT MATING AREA PLATINGGold 30 U"
PACKAGE HEIGHT MM16.95
PACKAGE LENGTH MM16.90
PACKAGE WIDTH MM16.10


JXD2-0Z11NL Without LED 100BASE-T VERTICAL RJ45 Jack TOP ENTRY 8P8C

JXD2-0Z11NL VERTICAL RJ45 MagJack Description:

Industrial Fast Ethernet and Gigabit (10/100/1000Base-T) single port RJ45 vertical/ top entry integrated magnetics connector,
designed to support applications, such as embedded automation and drive control, wall and panel mount HMI and outdoor networks.

.RoHS peak wave solder temperature rating 260°C
.Top entry, small footprint to minimize board space
.Meets IEEE 802.3 specification
.350μH minimum OCL with 8mA bias current
.High performance for maximum EMI suppression


JXD2-0Z11NL VERTICAL RJ45 Connector Electrical Schematic:

JXD2-0Z11NL Without LED 100BASE-T VERTICAL RJ45 Jack TOP ENTRY 8P8C

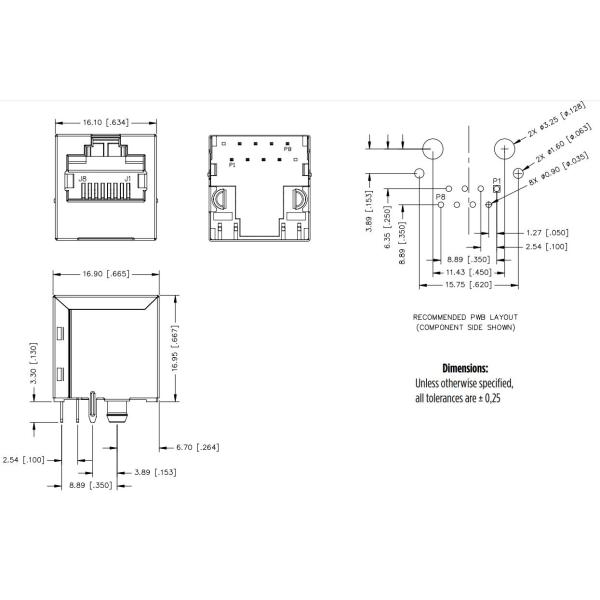

JXD2-0Z11NL Without Led VERTICAL RJ45 Jack​ Mechanical Specification:
JXD2-0Z11NL Without LED 100BASE-T VERTICAL RJ45 Jack TOP ENTRY 8P8C
JXD2-0Z11NL RJ45 MagJack Similar Part Number :
JXD2-0Z10NLJXD2-0Z11NLJXD2 0Z14NL
JXD2-0Z15NLJXD2-0Z25NLJXD2-9001NL


JXD2-0Z11NL Single Port Vertical Rj45 Connctor Package:

Package:Tray N.W/pcs:0.008kg

SPQ:50pcs Qty/carton:1000pcs

Carton size:32*30*31cm G.W./carton:8kg

JXD2-0Z11NL Without LED 100BASE-T VERTICAL RJ45 Jack TOP ENTRY 8P8C
