L19H007-4 2.5G / 5G Base - T Quad Ports LAN Filter PoE 90W Transformer Modules

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L19H007-4

Equivalent : LPxxxxxx

Speed : 2.5G/5G Base-T

Transformer Type : Isolation and Data Interface

Operating Temperature : 0~+70℃

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

L19H007-4 2.5G/5G Base –T Quad Ports LAN Filter PoE_90W Transformer Modules

Item Part Number L19H007-4
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 2.5G/5G BASE-T
Number of Ports Dual Ports
PIN number 96 PIN
Cores per Port 32
POE PoE_90W
Type DIP
Size 29 x 33.5 x 16.8
Pin Pitch 2.00
Circuits T+3C
Operating Temperature 0~+70℃
CMC Cable

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

L19H007-4 2.5G/5G Base –T Quad Ports LAN Filter ​Product Dimension:

L19H007-4 2.5G / 5G Base - T Quad Ports LAN Filter PoE 90W Transformer Modules

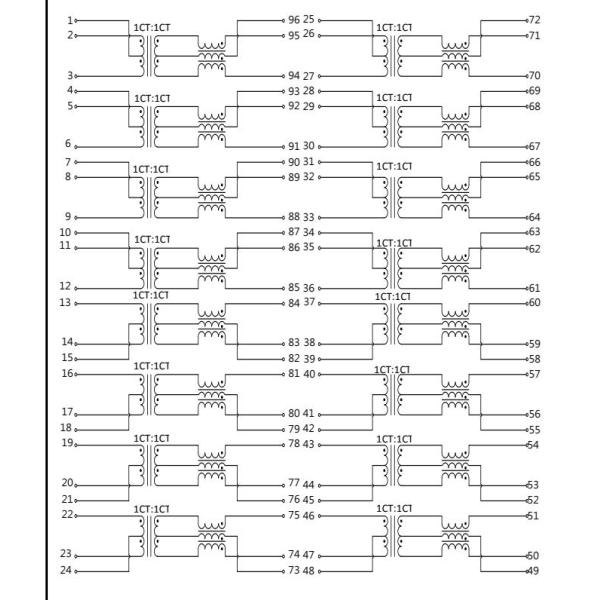

L19H007-4 Dual Ports PoE_90W Transformer Modules​ ELECTRICAL CHARACTERISTICS Schematic:

L19H007-4 2.5G / 5G Base - T Quad Ports LAN Filter PoE 90W Transformer Modules



L19H007-4 2.5G/5G Base –T Quad Ports Transformer Modules Recommened PCB Layout (Unit mm)
L19H007-4 2.5G / 5G Base - T Quad Ports LAN Filter PoE 90W Transformer Modules

L19H007-4​​​​​​ SPECIFICATION:

Designed for Ethernet 5G Base-T,Quad ports applications.

Supports 16 pairs of category 5e or greater cable.

Cable interface for isolation and low common mode emissions.

Designed to meet IEEE 802.3bt type4 with 1000mA balanced current.

Compliance with RoHS&Halogen Free requirements.

Operating and Storage Temperature
Operating Temperature: 0°C to +70°C
Storage Temperature: -25°C to +105°C

Packing Information
17pcs finished goods per tube.
40 tubes( 680 pcs finished goods) per master carton.

L19H007-4 Similar Part Number :

L1CN001-0 L3AH002-0 L3BH002-0
L12N003-0 L12T001-2 L12T002-0
L13H003-0 L14H001-3 L14H002-4
L14H003-3 L14H005-0 L14T002-0
L14T002-3 L18T010-3 L19H007-4
