2 x Stacked RJ45 LPJE17208CNL Up - Down

Name: 2 x Stacked RJ45 LPJE17208CNL Up Down
Brand: LINK-PP
Price: 0.11 USD

Place of Origin : China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : LPJE17208CNL

MOQ : 50/500/1000/60K

Price : $0.11-$24

Packaging Details : Tray

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Specification : LPJE17208CNL

Part NO : LPJE17208CNL

Indicator : No-LED

Application : HUB, PC card, Switch, Router etc

Mounting : Through Hole

Samples : Available

Contact Now

2x Stacked RJ45 LPJE17208CNL up-down Jack None Magnetics

LPJE17208CNL LINK-PP Rj45
2x Rj45 Lan Ports
Rj45 2x1 Jack
2x Rj45 8P8C Without Integrated Magnetic

SPECIFICATION:
1.Electrical Char.
Insulation Resistance: 500M-Ohm Min.
Contact Resistance: 20milli-Ohm Max.
Rating Current: 1.5A Max.
Rating Voltage: 120V AC.
Dielectric Voltage: 1000 Vrms 60 Sec Min.
2.Physical char.
Housing: PBT Glass Filled (UL 94V-0)
Color: Black Color
Spring Wire: 0.35mm Thickness Phosphor Bronze
Gold Plating Over Nickel.
Temperature Range: -40℃/+85℃
Durability: 600 Mating cycles Min.

Product Tags:

stacked rj45 connectors

modular jacks rj45

Wholesale 2 x Stacked RJ45 LPJE17208CNL Up - Down from china suppliers

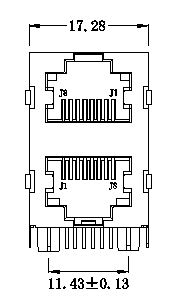

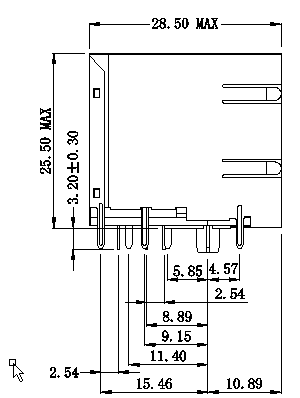

2 x Stacked RJ45 LPJE17208CNL Up - Down Images
