HR901131C Single Port RJ45 Modular Jacks LPJG0801CNL RJ45 without LED Emi Finger
NOTES:
1. Designed to support application,such as SOHO(ADSL modems),
LAN-on-Motherboard(LOM),hub and Switches.
2. Meets IEEE 802.3 specification
3. Connector Materials:
Housing: Thermoplastic UL94V-0
Contact / Shield : Cooper alloy
Shield plating : Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
4. Wave solder tip temperature : 265℃ Max
Wave solder tip temperature Time : 5 Sec Max
Description:
| 1. Product Type Features: |
| 1) Product Type | Connector |
| 2) Jack Type | RJ45 |
| 3) Profile | Standard |
| 4) PCB Mounting Orientation | Through Hole |
| 2. Mechanical Attachment: |
| 1) Jack Configuration | 1X1 |
| 3. Electrical Characteristics: |
| 1) Shielded | Yes |
| 4. Termination Related Features: |
| 1) EMI Finger | Yes |
| 2) Termination Method | Solder |
| 5. Body Related Features: |
| 1) Port Configuration | Stecked |
| 2) EMI Fingers -Top and Sides | With/Without |
| 3) Latch Orientation | Standard - Latch Down |
| 4) PCB Tail Length | 3.50±0.50mm |
| 6. Contact Related Features: |
| 1) Preloaded | Yes |
| 2) Contact Termination Type | Through Hole |
| 7. Housing Related Features: |
| 1) Connector Style | Jack |
| 8. Industry Standards: |
| 1) RoHS/ELV Compliance | RoHS compliant, ELV compliant |
| 2) Lead Free Solder Processes | Wave solder capable to 265°C |
| 3) RoHS/ELV Compliance History | Always was RoHS compliant |
| 9. Identification Marking: |
| 1) Left LED Color | Without |
| 2) Right LED Color | Without |
| 10. Conditions for Usage: | |
| 1) Applies To | Printed Circuit Board |
| 2) Environmental Conditions | Office / Premises |
| 3) Operating Temperature (°C ) | 0 - 70 |
| 11. Configuration Related Features |

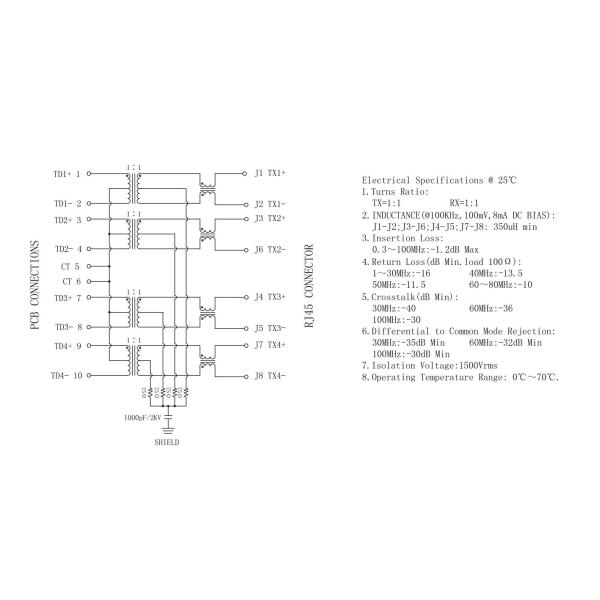

| 1) Magnetic Circuit | 3D15 |
| 2) Status Indicator | Led |
| 3) Decoupling Capacitor | With/Without |
| 4) Rear PCB Ground Tab | With/Without |
| 5) Signal Lead Quantity | 8 |
| 12. Operation/Application: |
| 1) Application | 1000 Base-T |
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
