Advantages of LPJG0926HENL:
1. RJ45 connector with 1000 Base-T integrated magnetics for POE+ Application.
2. LPJG0926HENL is an alternative to A70-112-331N126, offering identical performance specifications and customizable options.
3. Space Saving Design: Compact form factor for efficient use in high-density networking equipment.
4. EMI Radiation Reduction: LPJG0926HENL has shielding mechanisms to minimize electromagnetic interference (EMI).
5. DIP Type Mounting: Ensures a secure connection on PCBs, improving stability and assembly convenience.
6. Shielded Housing: Offers extra protection against external interference and EMI.
7. LED Options: Provide visual feedback on the connection's status.
A70-112-331N126 RJ45 Connectors Specification:
| AutoMDIX | Support |
| Connector series | Magnetic RJ45 Connector |
| Speed | 10/100/1000 Base-T |
| Mounting Type | Through Hole(TH) |
| Orientation | 90° Angle (Right) |
| Application-Lan | Ethernet POE/ PoE+,18W-30W |
| Height Above Board | 0.526" (13.36mm) |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 8 |
| Shielding | Shielded, Without EMI Finger |
| Features | Board Guide |
| Tab Direction | Down |
| Contact Material | Phosphor Bronze C5210R-EH |
| Contact Plating | Gold 6 |
| Operating Temperature | 0°C ~ 70°C |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| Shield Material | SUS201 |
| Housing Material | UL90V-0 Thermoplastic |
| Number of Ports | 1 |
| Number of Rows | 1 |

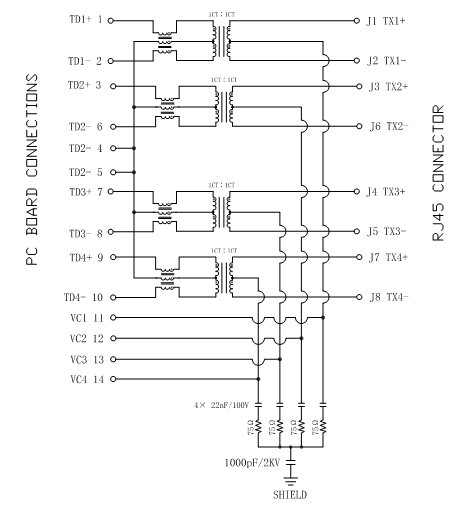

LPJG0926HENL Compatible Magjack A70 112 331N126 Datasheet:
LPJG0926HENL.pdf
Applications of PoE RJ45 Connector:
● Networking: routers, servers, switches, network firewalls, and SMPS (Switched-Mode Power Supplies).
● Consumer Electronics: digital cameras, video recorders, media players, game controllers, and televisions.
● Security Systems: alarms, intelligent cameras, monitoring systems, intercoms, and entrance guard systems.
● Telecommunications: smart home devices, smart meters, satellite equipment, new energy systems, and solar inverters.
● Medical Devices: surgical equipment, patient care devices, handheld medical tools, operation generators, home dialysis machines, and more.
● Industrial I/O (Input/Output): industrial PCs, embedded main boards, Ethernet control systems, automation equipment, fieldbus systems, and I/O controllers.
Support and Customization Service:
1. LINK-PP offers OEM and ODM services
2. Various Mounting Type Options: including DIP, Through Hole(TH), and Surface Mount Device (SMD).
3. Gold Plating Option for Contact Area
4. Diverse Layouts and Speeds: including 10/100/1G/2.5G/5G/10G Base-T.
5. Standard and Extended Operating Temperature Range
