Alternate to TG110-RPE5N5RLSMD Single Port 10/100BASE-TX PoE Isolation Modules

Name: Alternate to TG110RPE5N5RLSMD Single Port 10100BASETX PoE Isolation Modules
Brand: LINK-PP
Price: 0.06 USD

Wholesale Alternate to TG110-RPE5N5RLSMD Single Port 10/100BASE-TX PoE Isolation Modules from china suppliers

Place of Origin : Guangdong,China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : LP2019ANL

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Packaging Details : T&R

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Item : TG110-RPE5N5RL

Application : 10/100BASE-TX PoE Interface

Temperature : 0 ℃ to + 70 ℃

Pins : 16

Made In China : LP2019ANL

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Shielding : Shielded

Cross Rf : TG110-RPE5N5RL = > LP2019ANL

Contact Now

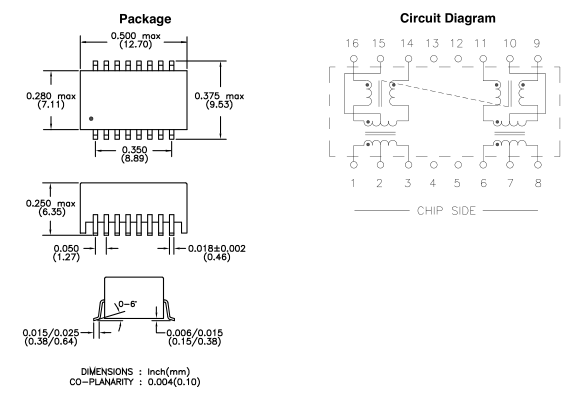

LP2019ANL Alternate to TG110-RPE5N5RLSMD Single Port 10/100BASE-TX PoE

SMD Single Port 10/100BASE-TX PoE/PoE+ Transformer

RP-ULTRA ™
IEEE802.3af/at Compliant
UL/EN60950 Recognized
100% Compliance Testing
1500Vrms Hi-Pot
Patented Open Frame Construction

Electrical Specifications @ 25°C

Isolation Voltage: 1,500Vrms
Insertion Loss (0.1-100MHz): 1.1dB max
CMR (0.1-100MHz): -38dB typ
Crosstalk (0.1-100MHz): -38dB
OCL @100KHz, 8mA: 350μH (over full temp. range)
Return Loss
0.5-30MHz: -18dB min
40MHz: -15.5dB min
50MHz: -13.6dB min

TG110-RP55N5RL Lan Transformer IEEE802.3af 350mA Halo TG110-RPE5N5RL Cross
TG57-S020NXRL	TG110-RPE5N5RL	FD02-104R1RL	TG110-RP55N5RL
TG58-S020NXRL	TG04-TDK2NSRL	FD12-104R1RL	FS22-114Y4RL
TG110-RPE5N5RL	TG04-TDK1N1RL	FD22-104R1RL	TD01-0506KRL
TG62-S020NXRL	TG110-RP55N5RL	FD02-104G1RL	TD01-0756KRL
TG66-S020NXRL	TG05-2004NCRL	FD12-104G1RL	TD01-1006KRL
TG87-S020NXRL	TG04-4004NARL	FD22-104G1RL	TD01-1506KRL
TG88-S020NXRL	TG04-4004NCRL	FD02-114GRL	LD01-0506KLF
TG89-S020NXRL	LG01-0346N1LF	FD12-114GRL	LG01-1006NLF
TD01-0756K	TG110-RP55N5RL	TG110-RP55N5RL	LD01-0756KLF
TD01-1006K	LD01-0366F4LF	TG110-S050P2RL	LD01-1006KLF
TG01-0756N	LG01-0356N1LF	TG110-S053P2RL	LG01-0506NLF
TG01-1006N	TG110-RPE5N5RL	TG110-S055P2RL	LG01-0756NLF
TG110-RP55N5RL	LG01-1006N1LF	TG110-S050J2RL	TG110-RPE5N5RL
TG01-1006P	TG04-1006P1	TG110-S055J2RL	LD01-0166F4LF
TG110-RPE5N5RL	TG04-2006P1	TG110-RPE5N5RL	TG42-1406P1RL

660-80MHz -12dB min

LINK-PP is pleased to offer the RP-Ultra™, the industry’s first “PoE” version of the small footprint SOIC-16. IEEE802.3af compliant with 350 mA current capability in both commercial and industrial temperature ranges. The RP-Ultra™ is ideal for VoIP phones, wireless base stations and most remote power applications

Alternate to TG110-RPE5N5RLSMD Single Port 10/100BASE-TX PoE Isolation Modules

TG110-RP55N5RL / TG110-RPE5N5RL SMD Single Port 10/100BASE-TX PoE Isolation Modules
