HX1188NL Lan Transformer Surface Mounted 10/100 Base - T Ethernet 16 Pins

HX1188NL 100Base-TX Transformers Features:

1. Fully compliant with RoHS-6 standards.
2. Designed with an open frame improving thermal management.
3. Surface Mount Technology Allows for easy integration.
4. 1.5 kV High Isolation Voltage ensuring safety and reliability in data transmission.
5. -40°C to +85°C Wide Operating Temperature Range.
6. Features 350 µH high inductance support stable data transmission.
7. 12.7x9.53x5.97 mm compact dimensions.
8. Can be stored in temperatures ranging from -50°C to +125°C.

Applications of HX1188NL LAN Transformer:

• LAN Ethernet Transformer/Choke
• 100 Base-TX Networks
• Data Interface and Isolation
• Industrial and Commercial Environments
• Networking Equipment
• Telecommunications
• Embedded Systems
• Automation Systems
• Security Systems

HX1188NL Datasheet:

Pulse HX1188NL Electrical Specifications(@25℃):

1. Turns Ratio 50KHz, 0.5V Chip side: Line side=1CT: 1CT±2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias: Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

40MHz: -14.4dB Min

50MHz: -13.1dB Min

60-80MHz: -12dB Min

100MHz: -10dB Min

5. Differential to Common Mode Rejection:

30MHz: -45dB Min

60MHz: -40dB Min

100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

60MHz: -35dB Min

100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min

HX1188NL LAN Transformer

100BASE-TX Ethernet Transformer

Pulse HX1188NL

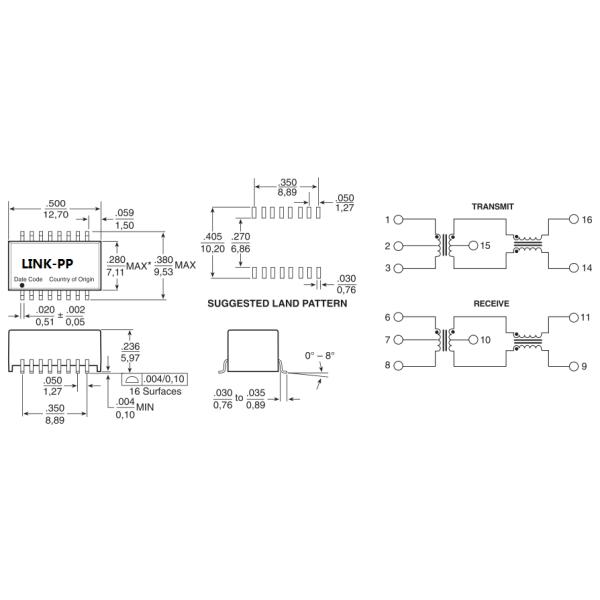

HX1188NL Lan Transformer Surface Mounted 10/100 Base - T Ethernet 16 Pins Images
